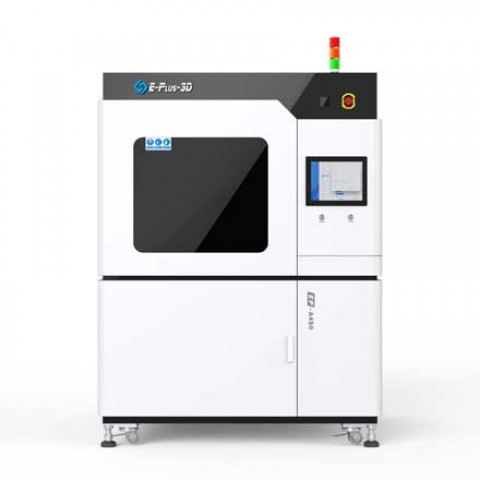

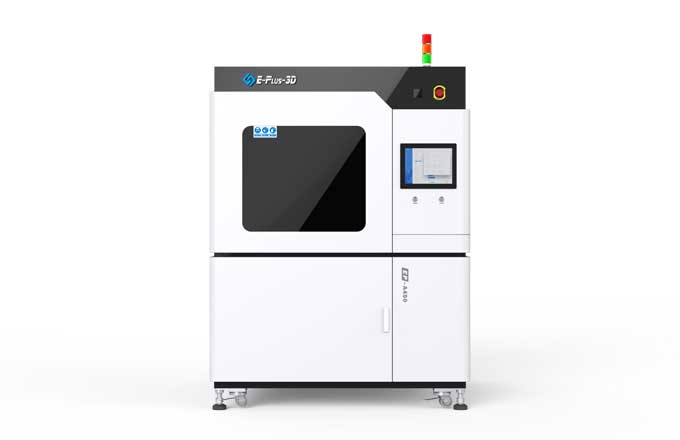

E-Plus 3D EP-A450

E-Plus 3D  EP-A450

EP-A450 Resin 3D Printer Features

  • EP-A450 Resin Sla 3d Printer Feature Stable Reliable
    Stable & Reliable
    • Dense high precision marble moving substrate

    • Self-developed software, support continuous upgrade

    • Automatic detection & calibration by functional module ensure working stability

    • Optimized structure, less maintenance

    High Efficiency

    • Patented VarioBeam technology

    • High-speed scan

    • Brand-new software brings one-click print and outstanding performance



  • EP-A450 Resin Sla 3d Printer Feature High Accuracy
    High Accuracy
    • Self-developed 3D optical high-precision calibration technology

    • Avoiding the influence of human factors

  • EP-A450 Resin Sla 3d Printer Feature User Friendly Intelligent
    User-friendly & Intelligent
    • Provide different processing parameter package

    • Broad application flexibility

    • Remote control available

  • EP-A450 Resin Sla 3d Printer Feature New Software
    New Software
    • EP-Resin, machine controlling software

  • EP-A450 Resin Sla 3d Printer Feature Recommended Materials
    Recommended Materials
    • Somos ® GP Plus 14122
      White opaque material, similar as ABS and PBT, an ideal choice for automobile, aerospace and consumption products, also can be used in biomedicine, dental and skin applications.
      Somos ® WaterShed XC 11122
      Transparent material without color, similar as ABS and PBT, with exceptional clarity and high water-resistance, an ideal choice for automobile, medical and consumption products, including lens, packing, fluid flow analysis, concept models, etc.

  • EP-A450 Resin Sla 3d Printer Feature Materials Recommended
    Recommended Materials
    • Somos ® PerFORM
      White material, with high heat tolerance, outstanding detail resolution and stiffness, ideal material for a variety of applications including tooling, wind tunnel testing, high temperature testing, electrical casings and automotive housings.
      SH8900
      White material, with good surface effect and ductility, an ideal choice for hand models, functional parts, models, etc.
      Open Platform
      Compatible with standard 355 nm photosensitive resin.

Technical Specifications

Machine Model EP-A450
Build Volume (X*Y*Z) 450 x 450 x 350 mm
Layer Thickness 0.05 mm~0.25 mm to choose
Spot Size 0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
Build Accuracy* ± 0.1 mm (L<100 mm)
± 0.1% xL (L ≥100 mm)
Laser Diode-pumped solid-state laser Nd:YVO4
wavelength:355 nm
Scanning Speed 15m/s (Max), 6-10m/s (Typical)
Dimensions (L*W*H) 1350*1200 *2050 mm
Net Weight 900 kg
Resin 120 kg
Power Supply 200-240 VAC, 50/60 Hz, single phase
Software EP-Resin
Input Data *.stl /*.slc/*.cli/*.epi
Working Platform Marble platform (A0 level)
Material Level Position Accuracy ± 0.02
Focus Lens F-theta lens system
Optical Scanning System High-speed scanning galvanometer
Operating Environment Temperature 20-26 ; relative humidity <40% (non-condensing)
